EL50448 TPMS relearn tool is an essential tool of replacement tire pressure sensor, tire pressure alarm remove or exchange tires. The upgraded EL50448 is more energy-saving, it is faster, stronger and more sensitive than other TPMS Relearn Tool.
EL-50448 TPMS relearn tool works on most GM Vehicles (GMC / Chevy / Buick / Cadillac / Opel
from 2006-2021, Cars, SUV, Pickup) equipped with 315 or 433 MHz Tire
Pressure Monitor system (TPMS) sensor. It is an essential tool of
replacement tire pressure sensor, tire pressure alarm remove or exchange
tires.
Applicable Models
Factory Tested Models：
2006-2020 For almost all GM Series vehicles: Buick, Cadillac, Chevy, GMC, Opel, etc.,
2010: Acadia, Enclave. OUTLOOK, Traverse (VIN R/V), Allure, LaCrosse (VIN G), Antara.Captiva, Terrain, Winstorm, Avalanche. Escalade, etc.,
2011: Acadia, Enclave, Traverse (VIN R/V), Alpheon, Antara. Captiva, Astra, Avalanche. Escalade, Suburban, Tahoe, Yukon (VIN C/K), Aveo, Barina (VIN S/T), etc.,
2012: Acadia, Enclave. Traverse (VIN R/V), Alpheon (2706), Ampera,
Volt (VIN R) (Europe), Antara, Captiva, Astra-J (2857), Avalanche, Escalade, etc.,
2013: Acadia, Enclave, Traverse (VIN R/V) (3206), Alpheon (3094), Ampera, Volt (VIN R) (Europe) (3211), Antara, Captiva (5376555),Insignia (3098), etc.,
Customer Tested Models：
2006-2013: Corvette, Nissan Frontier, Cadillac Escalade , GMC Acadia, GMC Yukon Denali, etc.,
2014-2015: Acadia, Buick Enclave, Buick Encore, Buick Lacrosse, Cadillac ATS, Cadillac CTS , etc.,
2016-2018: Acadia, Buick, Buick cascada, Cadillac XTS, Chevrolet Express 3500, Chevrolet SS Sedan, etc.,
When you need this tire relearn tool?
1. New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.
2. Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.
3. When tire pressure indicator light ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.
4. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
5. Exchanging the winter tires or Summer tires.
How to use the EL-50448 TPMS relearn tool?
1. Set the car in TPMS learning mode. (car horns twice)

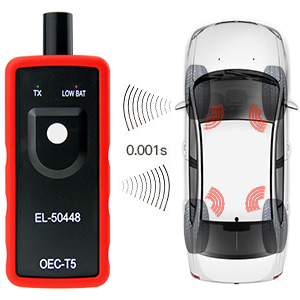

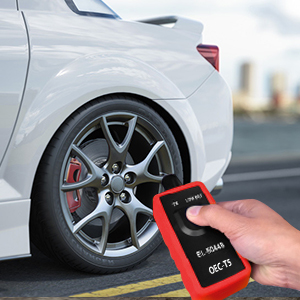

2. Starting relearn process from left front tire, point antenna on correct position. Press & hold power button. Once the speaker chirped, move to the next tire.

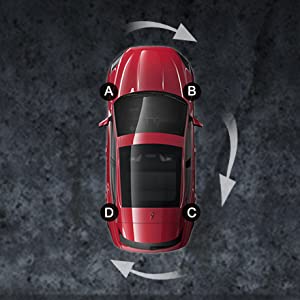

3. Follow this order to rest TPMS sensors: Front left, front right, rear right, rear left.
4. After all sensors reseted, the car horns twice means TPMS re-learn finished.
Tips for using
9V battery should be in good condition, NEW & fully charged.
Please make sure antenna fit in CORRECT position.
Do tire reset outside instead of in the garage.
Position of tires is also important, Front tires have to be straight.
Sensors should be original OEM sensors which well programmed.

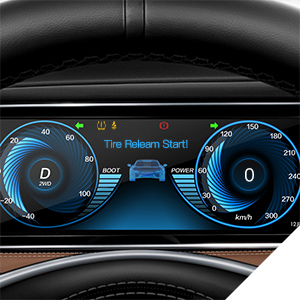

How to Get into the Learning Mode?1. Make the gear in P position. 2. Use cruise to choose TPMS re-learn mode in the dashboard settings. 3. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire. | Easy and FastTire pressure monitor sensor activation tool is simple, easy to use, activates the individual TPMS sensor with the press of one button. Sensitive sensor chip, run faster. Unleaded and immersion gold process circuit board make it run more stable. | Portable and HandyMini device, powerful function. With this simple device, you can easily relearn your GM TPMS by yourself instead of going to dealer shop. Save both time and money. |
