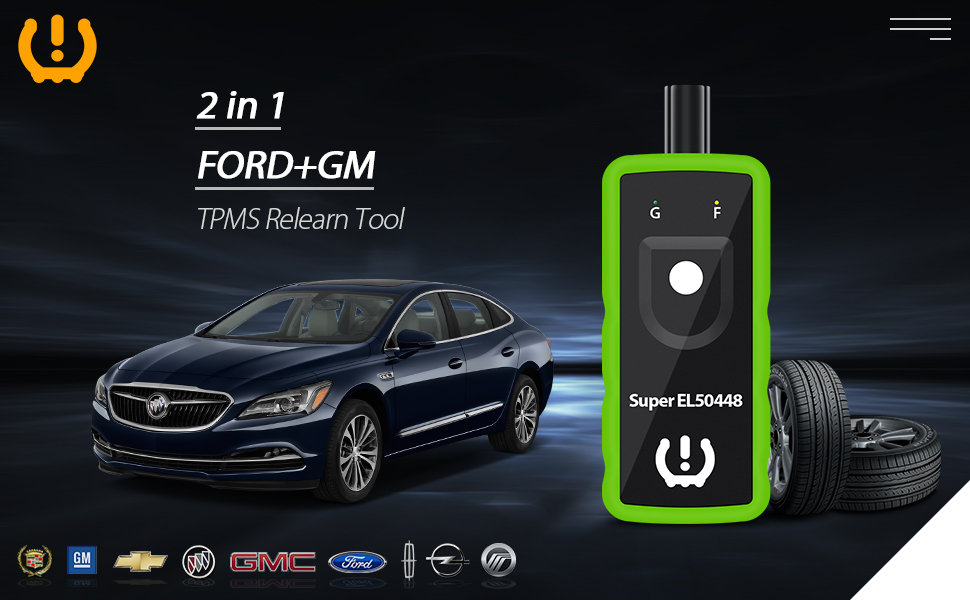

Super EL50448 TPMS relearn Tool works on most after 2005 year vehicles which equiped with tire pressure monitoring system manufactured for the North American market (Compatible with Opel, Buick, Cadillac, Chevy, GMC,Lincoln, Mercury, F150, F250, Focus,Fusion...etc )

1.Q: Will this tool reprogram tpms sensors?

A: No, it is not able to program any sensors, it is just for sensor relearning.

2. Q: How to change the relearn model on super el50448 tpms tool?

A: Press the power button for 5 seconds until the two leds flash.

And short press the power button, 1) If F led flashes, it is on the mode to reset F150 series vehicles; 2) If G led flashes, it means it is on the mode to test GM series vehicles.

3.Q: Does the relearn tool work for aftermarket sensors?

A: Yes, it works for OEM and Aftermarket sensors with frequency 315/433MHz

Applicable Models:

2006-2021 compatible with almost all GM Series vehilces: Buick, Cadillac, Chevy, GMC,Opel

2006-2010 compatible with Saab, Pontiac,Hummer, Saturn

2007-2021 compatible with F-150,Edge; 2008-2015 F-250 F-350 F-450 F-550 Super Duty

2006-2021 compatible with Mustang; 2006-2015 Escape; Explorer

2008-2021 compatible with Expedition,Flex,Taurus,E-150 E-250 E-350 E-450 Econoline Vans,Fiesta,Focus,Fusion; Lincoln MKZ, MKS,Navigator

2008-2011 compatible with Crown Victoria,Lincoln Town Car

2011-2021 compatible with Transit Connect

2006-2011 compatible with Ranger;Mercury Mariner,Grand Marquis,Milan

2007-2021 compatible with MKX,MKT;2007-2008 Mark LT

2006-2010 compatible with Mountaineer,Monterey

(Equipped with 315/433 MHz, It won't work if you've purchased aftermarket sensors with wrong frequency.)

When you need this tire relearn tool?

1. New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.

2. Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.

3. When tire pressure indicator light ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.

4. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.

5. Exchanging the winter tires or Summer tires.

How to set my car in TPMS re-learn mode?

***For GM series vehicles***

1. Make the gear in P position.

2. Use cruise to choose TPMS re-learn mode in the dashboard settings.

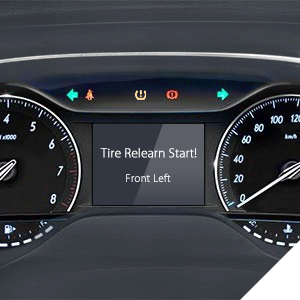

3. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.

***For F150 series vehicles***

1. Make the gear in P position.

2. Ignition switch to OFF, press and release the brake pedal.

3. Turn ignition switch from OFF position to RUN position 3 times and end at RUN position.

4. Depress and release the brake pedal.

5. Ignition to OFF position.

6. Ignition goes from OFF position to RUN position 3 times and ends at RUN position.

7. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.

How to use Super EL50448?

Require 1x Pcs 9V battery to work with tpms activation tool.

1. Set the car in TPMS learning mode. (car horns twice)

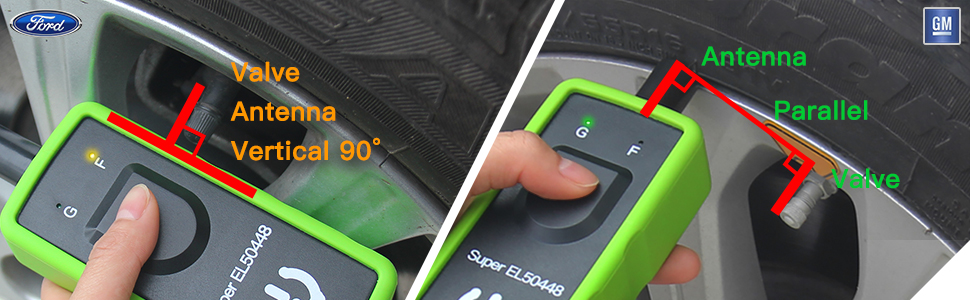

2. Starting relearn process from left front tire, point antenna on correct position. Press & release power button. Once the speaker chirped, move to the next tire.

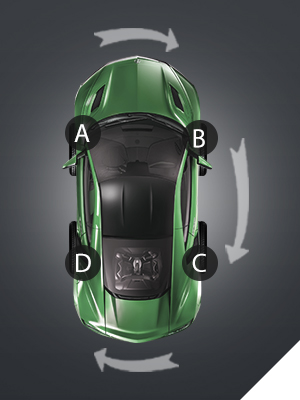

3. Follow this order to rest TPMS sensors: Front left, front right, rear right, rear left.

4. After all sensors reseted, the car horns twice means TPMS re-learn finished.
